Building A Quadcopter
// specs
- Frame
- Hobbyking X550 Glass Fiber · 550mm
- Configuration
- Quad (X)
- Motors
- 4 × D2822/14 1450kv
- ESCs
- 4 × Turnigy Plush 25A
- Flight controller
- Hobbyking KK2.0
- Radio
- Turnigy 9X · Mode 2
I have been working on building a custom Quad Copter with parts ordered from Hobby King.
Materials List:
- TURNIGY Plush 25amp Speed Controller (4)
- D2822/14 Brushless Outrunner 1450kv (4)
- Hobbyking KK2.0 Multi-rotor LCD Flight Control Board
- Turnigy 9X 9Ch Transmitter w/ Module & 8ch Receiver (Mode 2) (v2 Firmware)
- Hobby King Quadcopter Power Distribution Board
- Hobbyking X550 Glass Fiber Quadcopter Frame 550mm

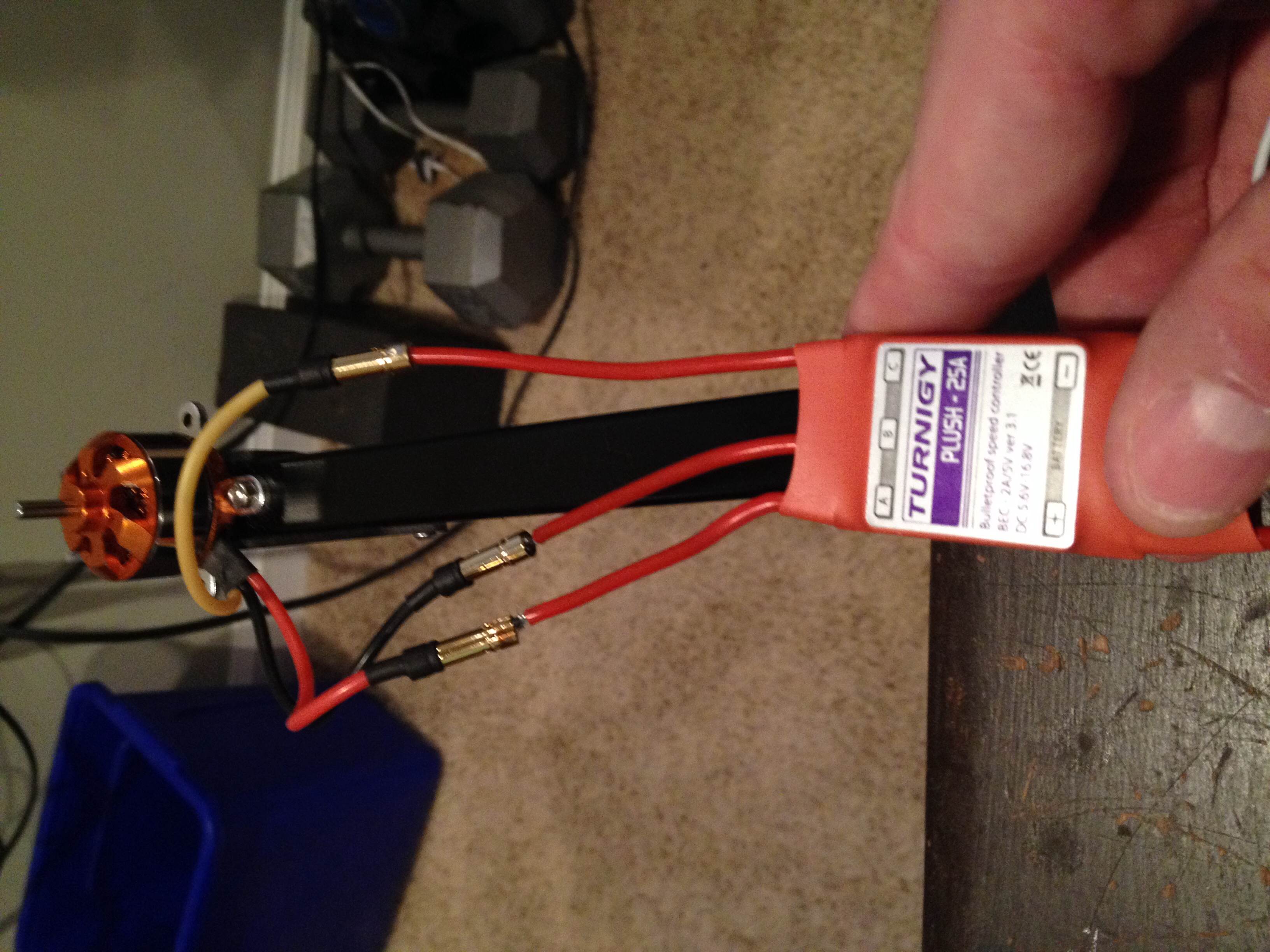

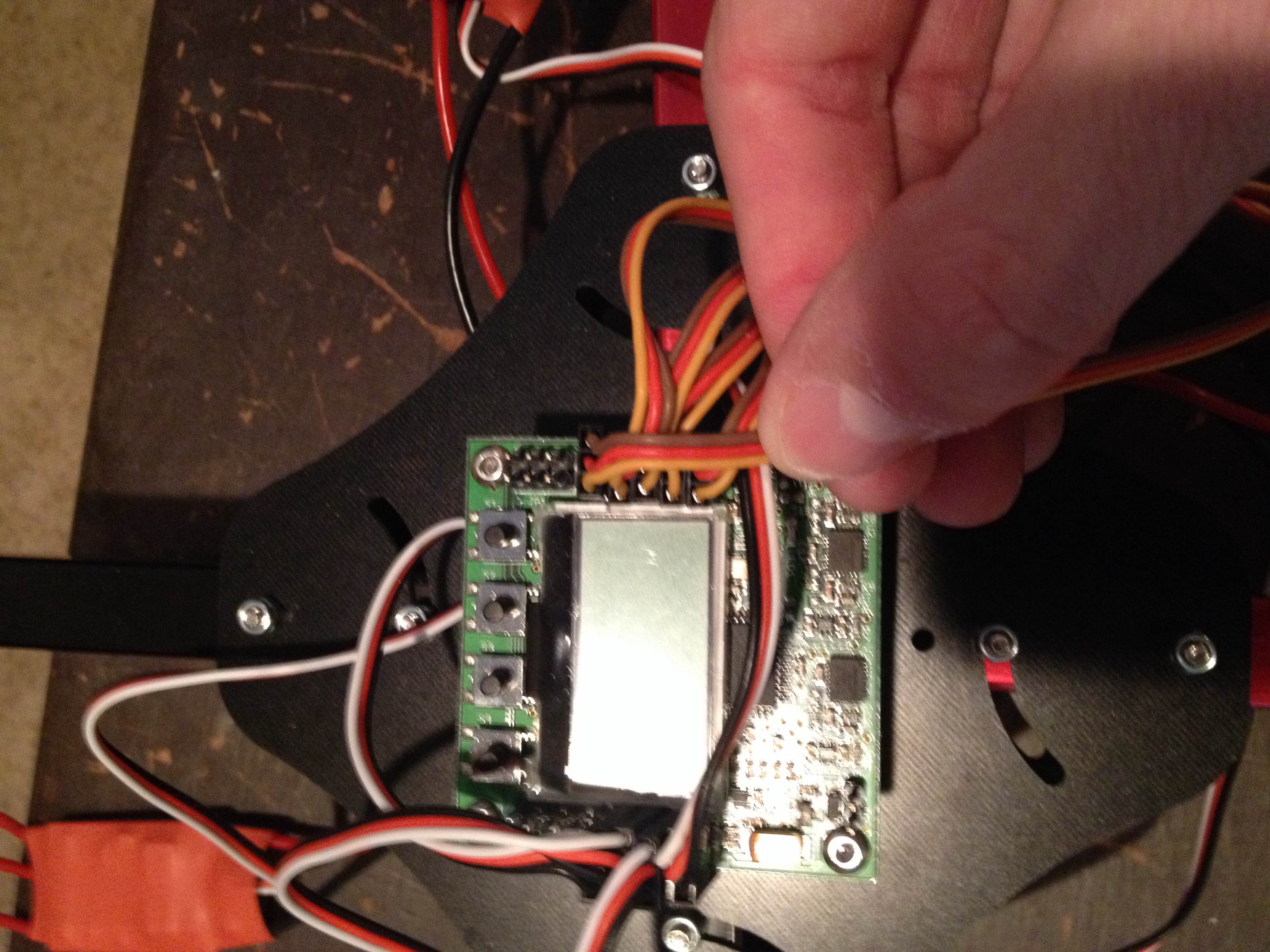

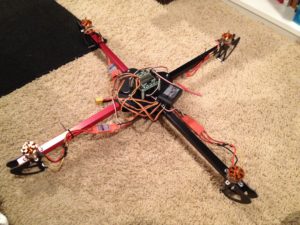

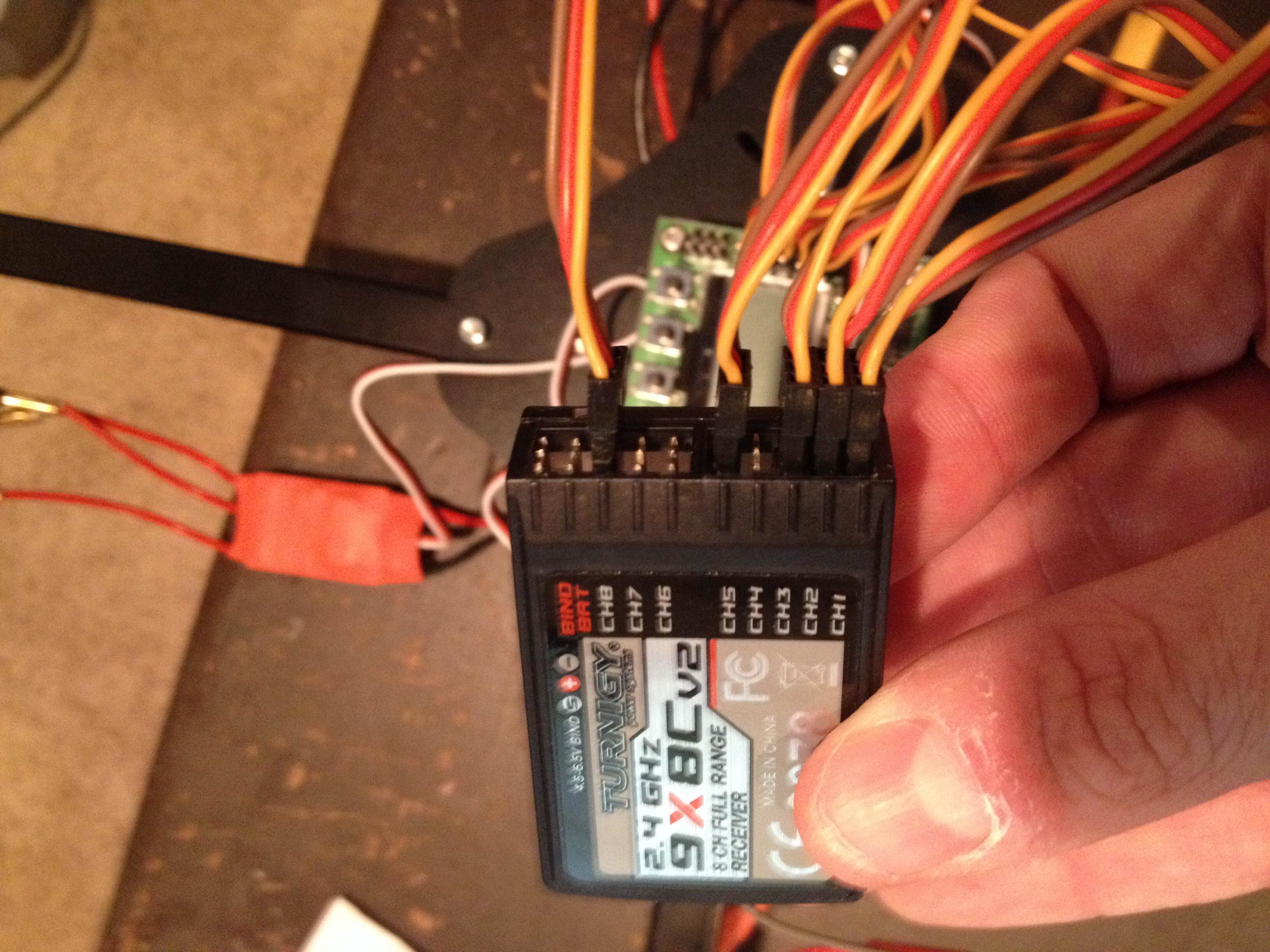

Wiring The Remote
The list below is the current way I have the remote wired to the flight controller.- AIL - CH1
- ELE - CH2
- THR - CH3
- RUD - CH4
- AUX - CH6

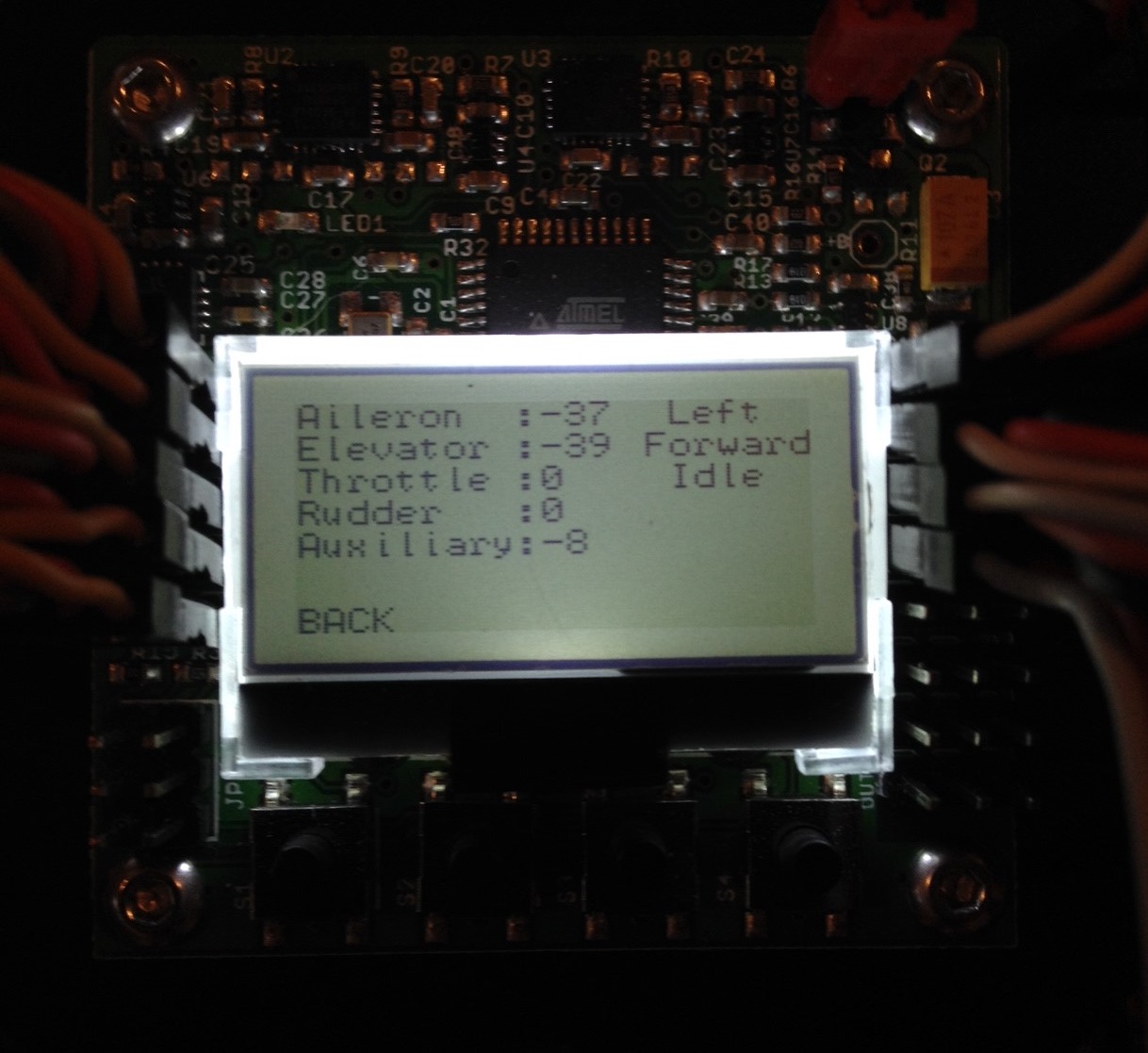

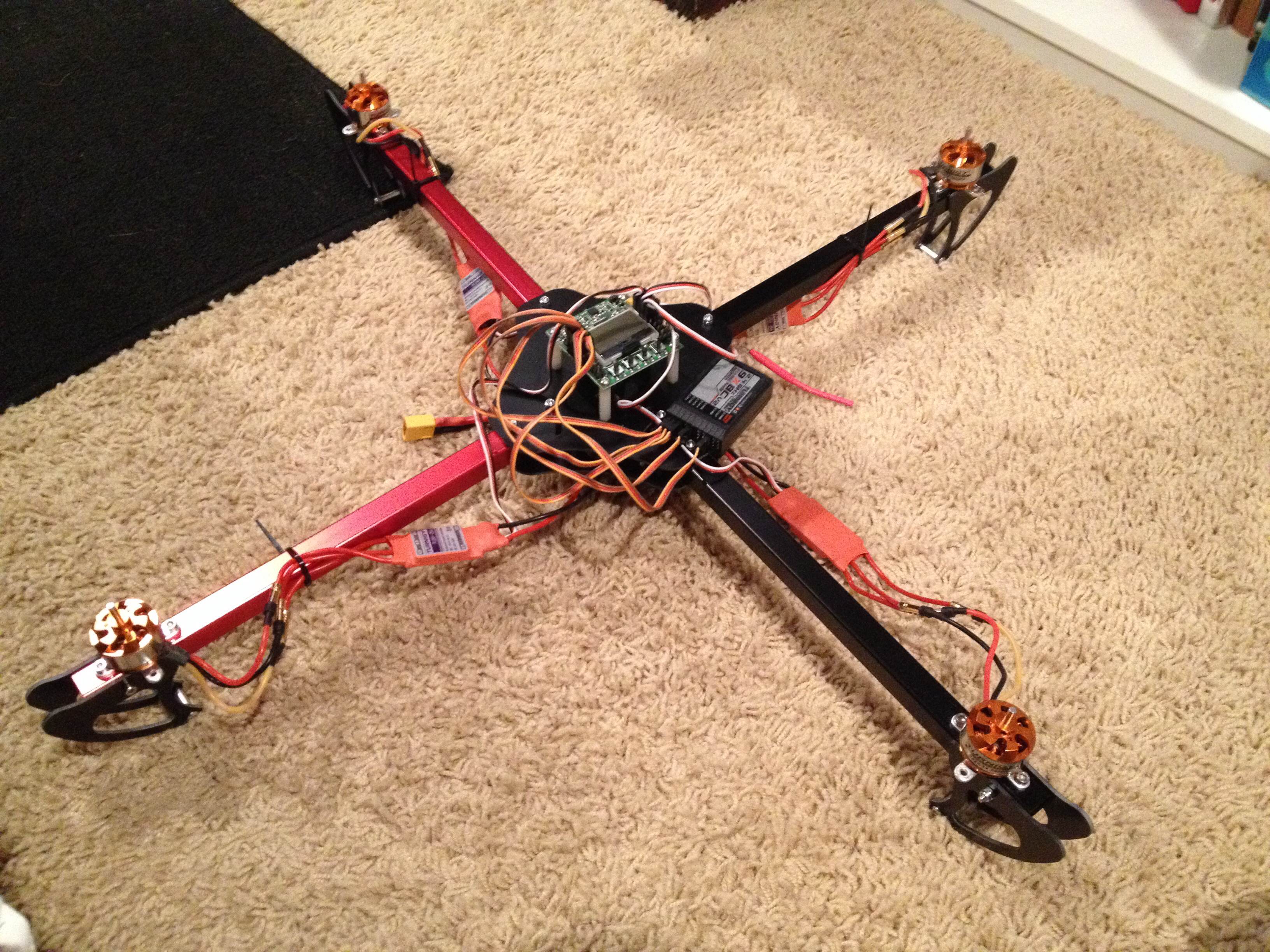

Wiring the Quad
Remote Configuration

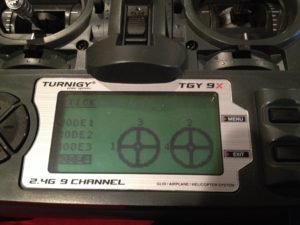

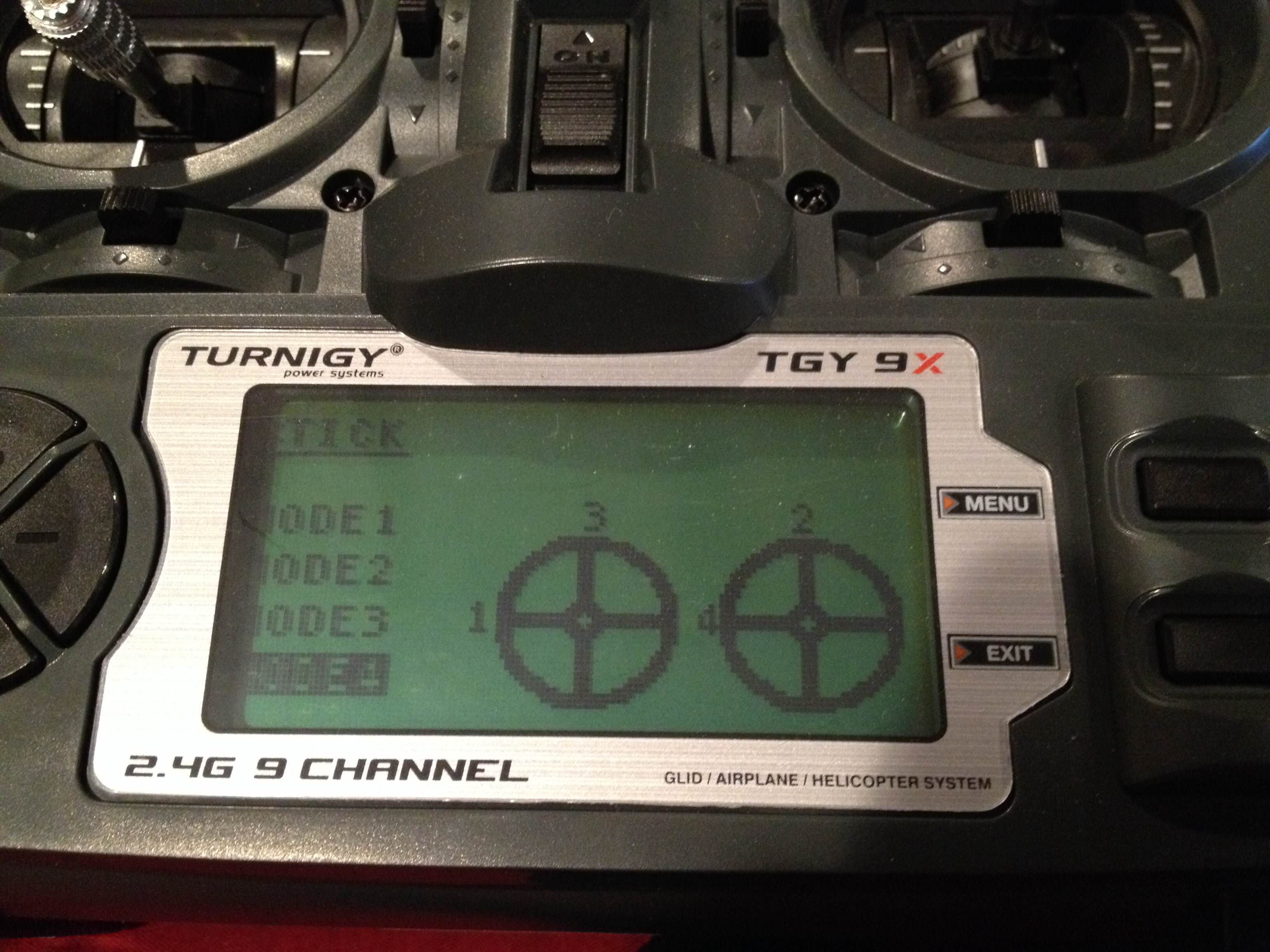

The picture below is how I have the remote configured.
// bill of materials
1× Hobbyking X550 Glass Fiber Quadcopter Frame 550mm
Buy → 4× D2822/14 Brushless Outrunner 1450kv
Buy → 4× TURNIGY Plush 25amp Speed Controller
Buy → 1× Hobbyking KK2.0 Multi-rotor LCD Flight Control Board
Buy → 1× Hobby King Quadcopter Power Distribution Board
Buy → 1× Turnigy 9X 9Ch Transmitter w/ 8ch Receiver (Mode 2, v2)
